AWC 500

Advanced Controller

Robust controller (PLC-based PAC) with extended temperature range

Contact us Compare product

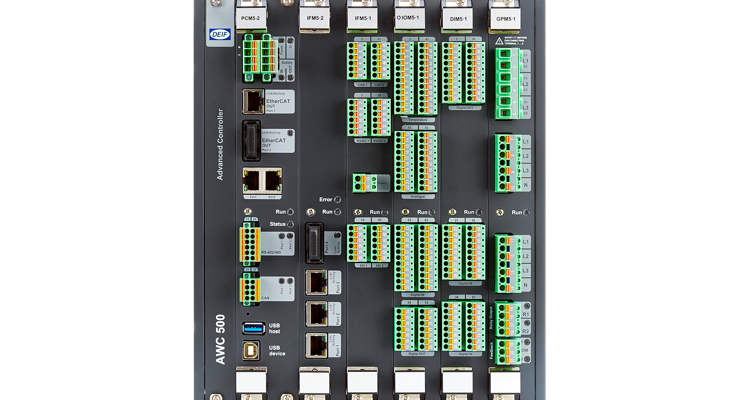

AWC 500 Front

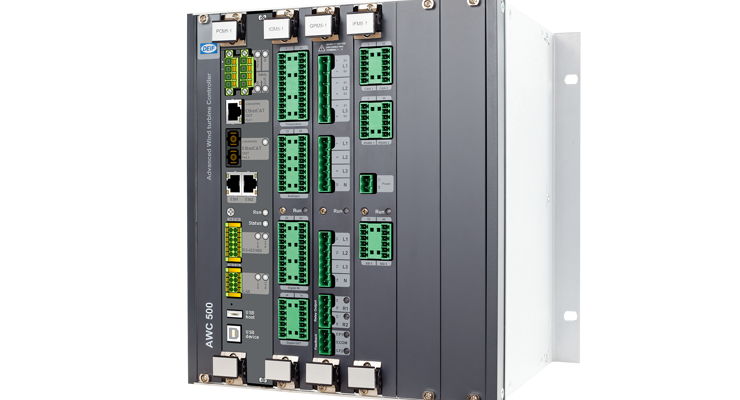

AWC 500 Angle

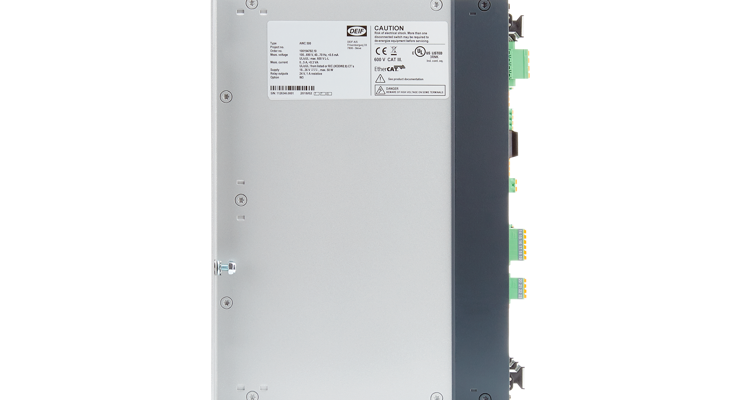

AWC 500 Side
AWC 500 Front
AWC 500 Angle
AWC 500 Side

The AWC 500 Advanced Controller ( PLC-based PAC ) is the latest addition to our AWC controller series. AWC 500 offers an unprecedented and unrivalled level of robustness.

Not only on mechanical and electrical parameters does the AWC 500 constitute the most robust solution in the industry. The controller is suitable for cold climate or extended temperature operation. With its embedded real-time Linux operational system and CODESYS CONTROL PLC run-time, the AWC 500 also offers a maximum of stability in terms of execution of the application software.

*Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries.

Read more

Documentation Software
Thyristor Control Module

Thyristor Control Module TCM-2

  • Operating temperature -25...70oC
  • Vibration DNV class A+C
  • 110V AC to 690V AC
  • CAN bus interface
  • Advanced cut-in by acceleration depending double cut-in ramp
  • Strongly reduced grid impact under cut-in
  • Stand-alone unit with external rpm pulse sensor on generator shaft
  • Applicable for 1- and 2-speed asynchronous generators
 More details
Integrated G59/3 protection turbine controller unit

Integrated G59/3 protection turbine controller unit AWC 500 - G59/3

     Feature Name ANSI code

  • Two stage over-/under voltage 27, 59
  • Two stage over-/under frequency 81L/H
  • df/dt (ROCOF) 81R
  • Vector jump/shift 78
  • Neutral Voltage Displacement (NVD) 59
  • Two stage over-/under voltage 27, 59
  • Two stage over-/under frequency 81L/H
  • df/dt (ROCOF) 81R
  • Vector jump/shift 78
  • Neutral Voltage Displacement (NVD) 59(on roadmap)
 Compare product More details
Software AWC 500

Software AWC 500 CODESYS External C lib package

System requirements:

  • Windows XP, 7 or later
  • AWC 500 CODESYS development package
  • AWC 500 C/C++ development package
  • Download
  • Contact DEIF ( awc500support@deif.com ) for access information for downloading via the AWC 500 FTP area
 More details
Software - AWC 500 development package

Software - AWC 500 development package CODESYS

IEC61131-3 PLC programming (ST, FDB, SFC, IL, LD)

  • CODESYS-based (compliant with other PLCs. Programmes based on CODESYS V2)
  • Integrated HMI/Web visualisation
  • Graphical PLC configuration
  • Online debugging
  • Multilanguage programming editor (unicode support) and help in Chinese, German and English
  • Monitoring of all variables • Writing and forcing of receipts (sets of variables) into the PLC
  • Debugging your complete project (breakpoints, stepping, single cycle, call stack))
  • Interrupt-free online changes of POUs and data
  • Sampling trace
  • Library management for user-defined libraries
  • Offline simulation • Graphic PLC configuration
  • OPC Server

The development package includes:

  • CODESYS V3
  • AWC 500 TSP (Target Support Package)
  • CODESYS Control V3 (PLC run-time update)
  • AWC 500 EtherCAT device description files (.xml/.devdesc.xml)
 More details
