Middle East Energy Expo 2026 - Hybrid
Green, reliable hybrid power and microgrid solutions
Greenfield applications
Brownfield applications
AGC 150 hybrid
Advanced Genset Controller
iE 250
The intelligent energy controller
iE Convert
Efficient modular power converter
Advanced Genset Controller AGC 150 Hybrid
- Minimum Genset load
- Load calculation in terms of solar power
- Genset start/stop based on mains import/export
- Genset start/stop based on PV production
- PV included in mode: MPE Mains Power export/import
- PV included in mode: LTO Load Take over
- PV included in mode: Fixed Power
- PV included in mode: AMF Automatic Mains Failure
- PV included in mode: Peak Shaving
Advanced Genset Controller AGC 150 Generator
- Synchronization
- Power Management Core (32dg)
- -40 degree support
- PLC logic
- Engine and Generator protection
- Engine CANbus
- Front mount
- Additional CANbus based I/O (9 x CIO modules)
- DEIF digital AVR DVC550 support
- Multi purpose PID´s
- Tier4 final/stage5
- Emulation
- Hybrid Energy Management System support
- Fuel optimisation
Advanced Genset Controller AGC 150 Mains
AGC 150 Mains - features
Operating modes with single or multiple mains:
AMF, Fixed power, Mains power export Load take over, Peak shaving
- Mains (Utility)
- power monitoring (kW, kV, A & pf)
- decoupling protection
- kW export protection
- electrical protections
- No break transfer of load
- Multi start settings
- Minimum of starting genset
- 12 Digital inputs and 12 digital outputs
- Communications ports (CAN, USB, RS485, Ethernet).
- Event & Alarm log (500 each)
- Programmable PLC editor

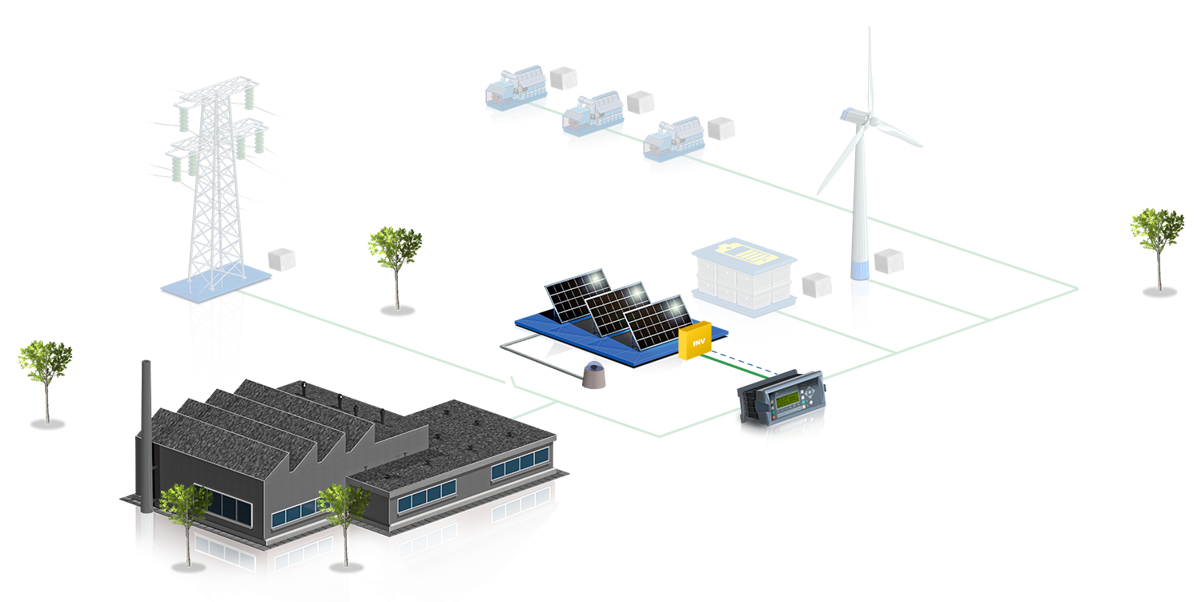

Flexible PV controller ASC 150 Solar

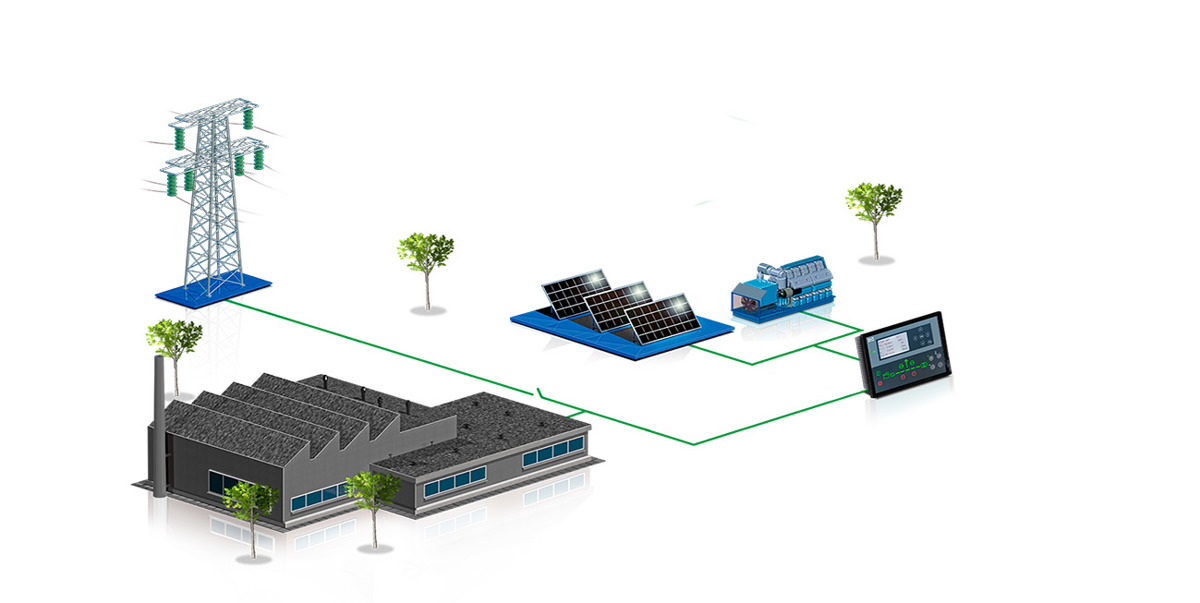

Single controller
- Useful for brownfield applications
- Makes sure that there is a minimum genset load
- Optimises the diesel genset load for high efficiency and low carbon footprint
Power management
- Automatically maximises PV power
- Automatically Load-dependent start and stop generators
- Automatically closes and opens breakers
- Optimises the diesel genset load for high efficiency and low carbon footprint
- Balances the loads in the system

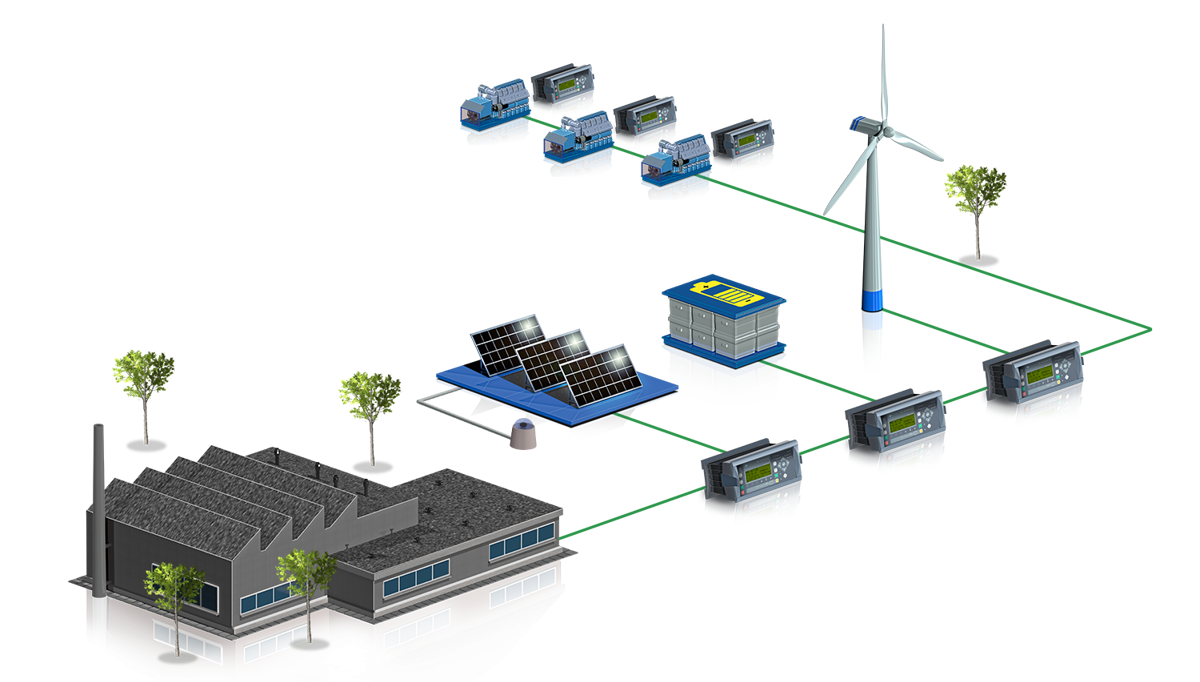

Off-grid applications
- With a genset:
The controller uses the genset power measurements to calculate the set points for the PV power.
- With storage:
The controller combines the available PV power with the charge/discharge scheme to determine the set point for the PV power.
Grid-tied applications
- Feed surplus PV energy to the grid
- Charge the energy storage system (ESS)
- Regulate PV production to match the self-consumption

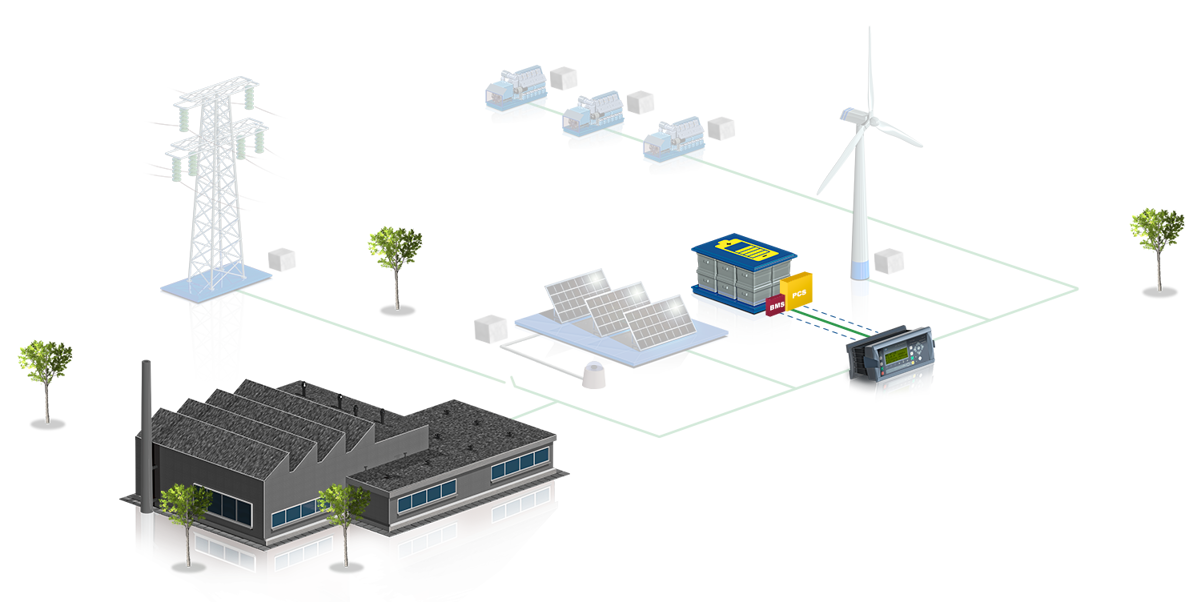

Flexible ESS controller ASC 150 Storage
Single controller:
- Useful for rental and brownfield applications
- Automatically charges and discharges the ESS
- Optimises the diesel genset load for high efficiency and low carbon footprint
- Requires power measurement and breaker feedback for other power sources
- Only one source: Can use the controller's 4th current measurement.
- Multiple power sources: Measurements from:
- Genset controllers (DEIF or third parties)
- Power meters
- Transducers -
Power management communication is not required
Power management:
- Automatically charges and discharges the ESS
- Automatically uses the ESS as spinning reserve for PV and microgrids
- Automatically starts and stops generators
- Automatically closes and opens breakers
- Optimises the diesel genset load for high efficiency and low carbon footprint
- Optimises the fuel consumption
- Balances the loads in the system
- Uses the plant logic
- Makes sure that the system is safe
