Turbo Control (TC)

Steam | Turbine

Beyond conventional speed governing

Turbo Control - Steam is a modular steam turbine control solution from DEIF, a global supplier of intelligent power and energy control systems. Designed beyond conventional speed governing, it combines flexible software, scalable hardware, and integrated synchronizing and load management to support reliable, efficient, and future-ready turbine operation.

Contact us
Tc Turbo Controller Steam 003

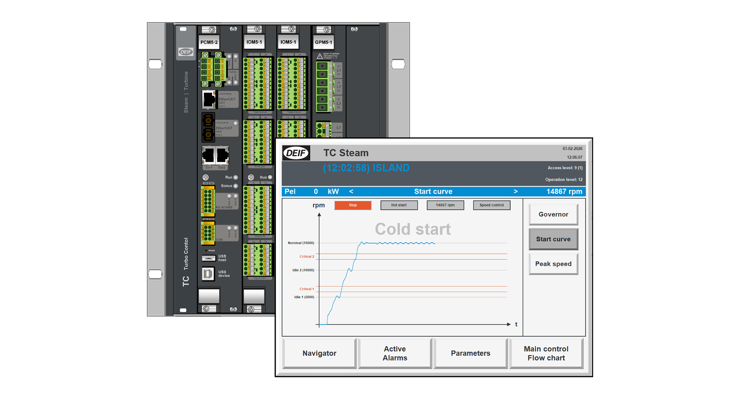

Tc Turbo Controller Steam 005
Tc Turbo Controller Steam 004
Tc Turbo Controller Steam 003
Tc Turbo Controller Steam 005
Tc Turbo Controller Steam 004

The Turbo Control - Steam is developed to deliver robust, precise, and highly flexible steam turbine control across industrial, power generation, and compressor applications. Built on a modular and scalable hardware platform, it moves beyond the limitations of conventional speed governors by combining plug‑and‑play expansion with intelligent, configurable software. Auto‑detectable hardware cards, distributed I/O, and an adaptable control architecture make it easy to tailor one unified controller to anything from simple mechanical drives to advanced multi‑valve steam turbines. Designed for harsh environments and engineered for long‑term reliability, the Turbo Control - Steam Turbine brings together high‑performance sensing, integrated protection, advanced pressure and speed control, and seamless communication interfaces—ensuring stable, future‑ready turbine operation even as system demands evolve.

Packages that fit your application

With its modular design, the Turbo Control - Steam adapts seamlessly to your operational needs, offering three distinct packages: Core, Extended, and Premium - each tailored to specific requirements.

Core Package

The Core package of the Turbo Control - Steam is designed to deliver reliable speed control for industrial applications and simple mechanical drive uses. This configuration does not include breaker control but provides input and output options to ensure straightforward integration.

Extended Package

With the Extended package, users can select between speed control and condensate or backpressure applications, making it an excellent choice for both power generation and compressor operations. This version offers an optional GPM I/O module, expanding connectivity and functionality. The feature set is broader than the Core package, providing enhanced flexibility while remaining accessible.

Premium Package

The Premium package encompasses all the capabilities of the Extended package and further introduces full extraction functionality, catering to the most advanced steam turbine requirements. Like the Extended version, it supports optional GPM I/O, but distinguishes itself by offering the complete suite of TC Controller features for maximum operational performance.

Read more

  • Aar

    Contact us to discuss your options

    - 90 years of energy pioneering
    - Manufactured at the highest standards
    - Superior quality
    - Unmatched service and support
    - Made in Denmark

    Contact us
Advanced Controller

Advanced Controller AWC 500

  • Cold start-up/Operating temperature: -40 to 70°C
  • Storage temperature: -40 to 85 °
  • Climate: 55 °C 97 % RH condensing
  • Altitude: < 4000 m
  • Vibration : 2.1 g (3.2 to 50 Hz) 1.0g (13.2 to 100 Hz)
  • Shock: 50 g, 11 ms, half sine
  • Bump: 25 g, 6 ms, half sine
  • Direct 3-phase 690 V voltage and 1/5A current measurement, with class 0.5 Power measurement
  • Fully EtherCAT-based I/O and CAN, SSI, TCP/IP, RS-422/485 communication interfaces
  • Operating system software with fail-safe update
  • Fault-tolerant file system
  • Open software development with Linux, C/C++, CODESYS (IEC 61131-3)
 Compare product More details
Steam turbine controller

Steam turbine controller AGC Steam

More details
Programmable automation controller with EtherCAT based I/O

Programmable automation controller with EtherCAT based I/O AMC 600

General specifications

  • Cold start-up/Operating temperature: -40 to 70 °C
  • Storage temperature: -40 to 85 °C
  • Climate: 55 °C 97 % RH condensing
  • Altitude: < 4000 m
  • Vibration : 2.1 g (3.2 to 50 Hz) 1.0g (13.2 to 100 Hz)
  • Shock: 50 g, 11 ms, half sine
  • Bump: 25 g, 6 ms, half sine

  • New platform formfactor – height of just 122 mm; depth 114 mm
  • Design lifetime of no less than 10 years at 40 ºC surrounding temperatures
  • Backplane mounted rack ensuring stable inter-module communication during operation in the entire products lifetime
  • Fully production tested control system units lowering in-sourcing costs for series production at customer
  • Suitable for Stationary, mobile, wind turbine retrofit
  • Increased mechanical robustness
  • Increased electrical protection levels ; ESD up to 6kV, up to 4kV on power inputs and 2kV on all signal and communication power for fast transients protections
  • Designed the input circuits with protections against failure connections
  • Cold start up in very low-temperature without pre-heating
  • Proven electronics design for demanding condensing climates
  • Built-in standard EtherCAT as native communication protocol for use as distributed I/O
  • High density IO modules
    • 24V DC Digital Inputs, Digital Outputs, Voltage / Current Analogue Inputs, PT-100 inputs
  • Condition monitoring modules with High Frequency Analogue Inputs
  • Support for most widely used fieldbusses : CAN/CANopen, PROFINET, RS-422/485, TCP/IP ( OPC UA, Modbus TCP etc. )



  • Warranty: 2 years (not including wearable parts) with option to 5 totally years



System software, Operating System and Programming

  • Operating system software with fail-safe update
    • DEIF In-house maintained OS
    • Real-time Patched Linux
    • Web based configuration
    • Simplified update procedures (no special tools, same for OS and firmware)
    • Secured Certificated based access by standard protocols
    • Customer manages all users (Operator, Service and Administrator), rights and credentials
    • Network configuration of the 2 independent network interfaces.
    • Network Time protocol support as Client
    • Fail-safe system software start up with two OS images (active and fault-back)
    • Fault-tolerant file system
  • Web based configuration
  • User management
  • Programming with CODESYS V3.5 and C/C++
    • Regular updates to newest CODESYS V3.5 Service Packs
  • Secure Web based visualization
 Compare product More details
Medium Voltage Relay

Medium Voltage Relay MVR-200 series

  • Programmable logic
  • Fast and easy commissioning and service with front communication port and intuitive software
  • Password-protected user levels
  • Individual voltage and current harmonics up to 31st
  • Redundant Ethernet with Modbus TCP
  • RS-485 Modbus RTU communication
  • IEC 60870-5-104/103/101 communication
  • IEC 61850 communication (incl. HSR, PRP, PTP acc. IEEE 1588) and GOOSE
  • On-site replaceable spare part modules
  • Class 0.5 power and energy measurement (Class 0.2S optional)
  • Conformal Coating available for all devices
  • Marine type approval by major class societies
 Compare product More details
Advanced graphical interface

Advanced graphical interface AGI 400

  • Wide screen format
  • True glass front
  • Capacitive touch screen
  • Multi-touch and Gestures
  • Robust aluminium housing
  • SD card slot for easy storage and updating
  • USB hosts for printers, accessories, data storage and updating
  • Dimmable LED backlight
  • Web server for remote access from i.e. mobile devices
  • 3 Ethernet ports with integrated switch
  • Serial communication (RS-232, RS-422 and RS-485)
  • Wide range of support for industrial protocols
  • OPC UA Server and Client
  • JAVA scripting
  • CODESYS V3 (optional)
  • Powerful ARM Cortex-A9 processor
  • Plug-in module for CANbus (CANopen/J1939)
  • Wide operating temperature -20°C to +60°C
  • Marine certifications
  • Certified for hazardous environments
  • Available in 7", 10", 15" and 21" sizes
