EMPower 2025 - PMS
Energy Management and Protection
MVR-200 Series
Reliable protection and control
iE 250
The intelligent energy controller
iE Convert
Efficient modular power converter

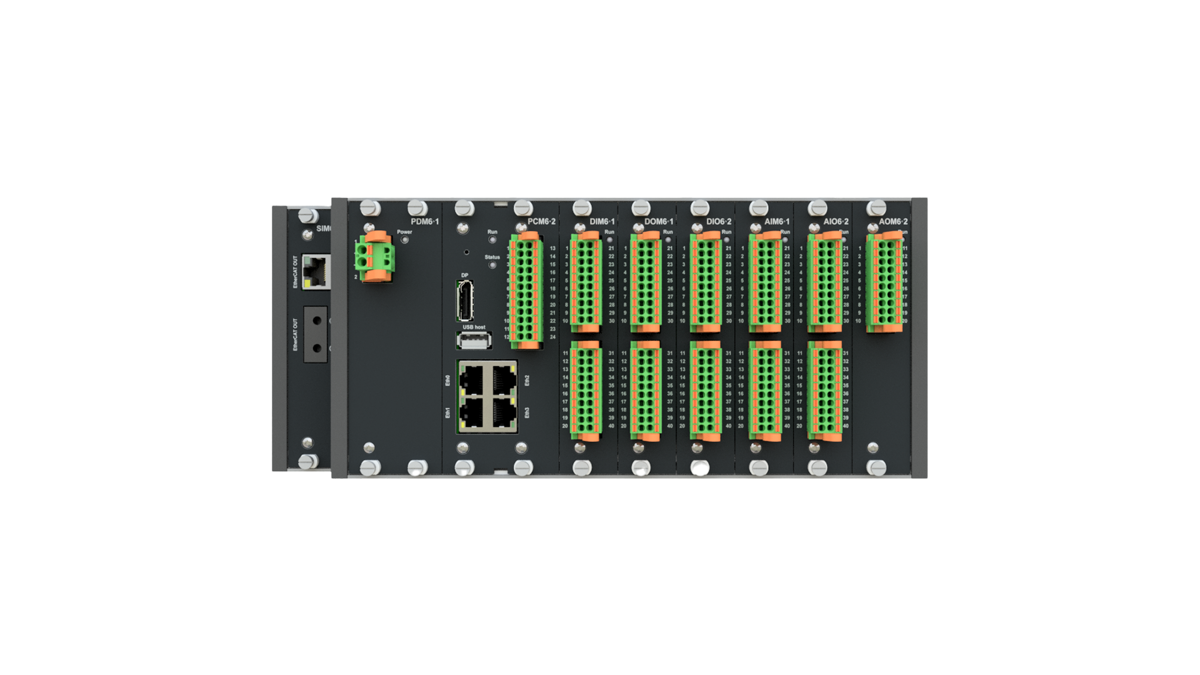

iE 650 PLC
Programmable Automation controller
Advanced Genset Controller AGC 150 Hybrid
- Minimum Genset load
- Load calculation in terms of solar power
- Genset start/stop based on mains import/export
- Genset start/stop based on PV production
- PV included in mode: MPE Mains Power export/import
- PV included in mode: LTO Load Take over
- PV included in mode: Fixed Power
- PV included in mode: AMF Automatic Mains Failure
- PV included in mode: Peak Shaving
Advanced Genset Controller AGC 150 Generator
- Synchronization
- Power Management Core (32dg)
- -40 degree support
- PLC logic
- Engine and Generator protection
- Engine CANbus
- Front mount
- Additional CANbus based I/O (9 x CIO modules)
- DEIF digital AVR DVC550 support
- Multi purpose PID´s
- Tier4 final/stage5
- Emulation
- Hybrid Energy Management System support
- Fuel optimisation
Advanced Genset Controller AGC 150 Mains
AGC 150 Mains - features
Operating modes with single or multiple mains:
AMF, Fixed power, Mains power export Load take over, Peak shaving
- Mains (Utility)
- power monitoring (kW, kV, A & pf)
- decoupling protection
- kW export protection
- electrical protections
- No break transfer of load
- Multi start settings
- Minimum of starting genset
- 12 Digital inputs and 12 digital outputs
- Communications ports (CAN, USB, RS485, Ethernet).
- Event & Alarm log (500 each)
- Programmable PLC editor
Flexible ESS controller ASC 150 Storage
Single controller:
- Useful for rental and brownfield applications
- Automatically charges and discharges the ESS
- Optimises the diesel genset load for high efficiency and low carbon footprint
- Requires power measurement and breaker feedback for other power sources
- Only one source: Can use the controller's 4th current measurement.
- Multiple power sources: Measurements from:
- Genset controllers (DEIF or third parties)
- Power meters
- Transducers -
Power management communication is not required
Power management:
- Automatically charges and discharges the ESS
- Automatically uses the ESS as spinning reserve for PV and microgrids
- Automatically starts and stops generators
- Automatically closes and opens breakers
- Optimises the diesel genset load for high efficiency and low carbon footprint
- Optimises the fuel consumption
- Balances the loads in the system
- Uses the plant logic
- Makes sure that the system is safe
Flexible PV controller ASC 150 Solar
Single controller
- Useful for brownfield applications
- Makes sure that there is a minimum genset load
- Optimises the diesel genset load for high efficiency and low carbon footprint
Power management
- Automatically maximises PV power
- Automatically Load-dependent start and stop generators
- Automatically closes and opens breakers
- Optimises the diesel genset load for high efficiency and low carbon footprint
- Balances the loads in the system
Off-grid applications
- With a genset:
The controller uses the genset power measurements to calculate the set points for the PV power.
- With storage:
The controller combines the available PV power with the charge/discharge scheme to determine the set point for the PV power.
Grid-tied applications
- Feed surplus PV energy to the grid
- Charge the energy storage system (ESS)
- Regulate PV production to match the self-consumption
